CAMELION LBC-321 universal charger BP1

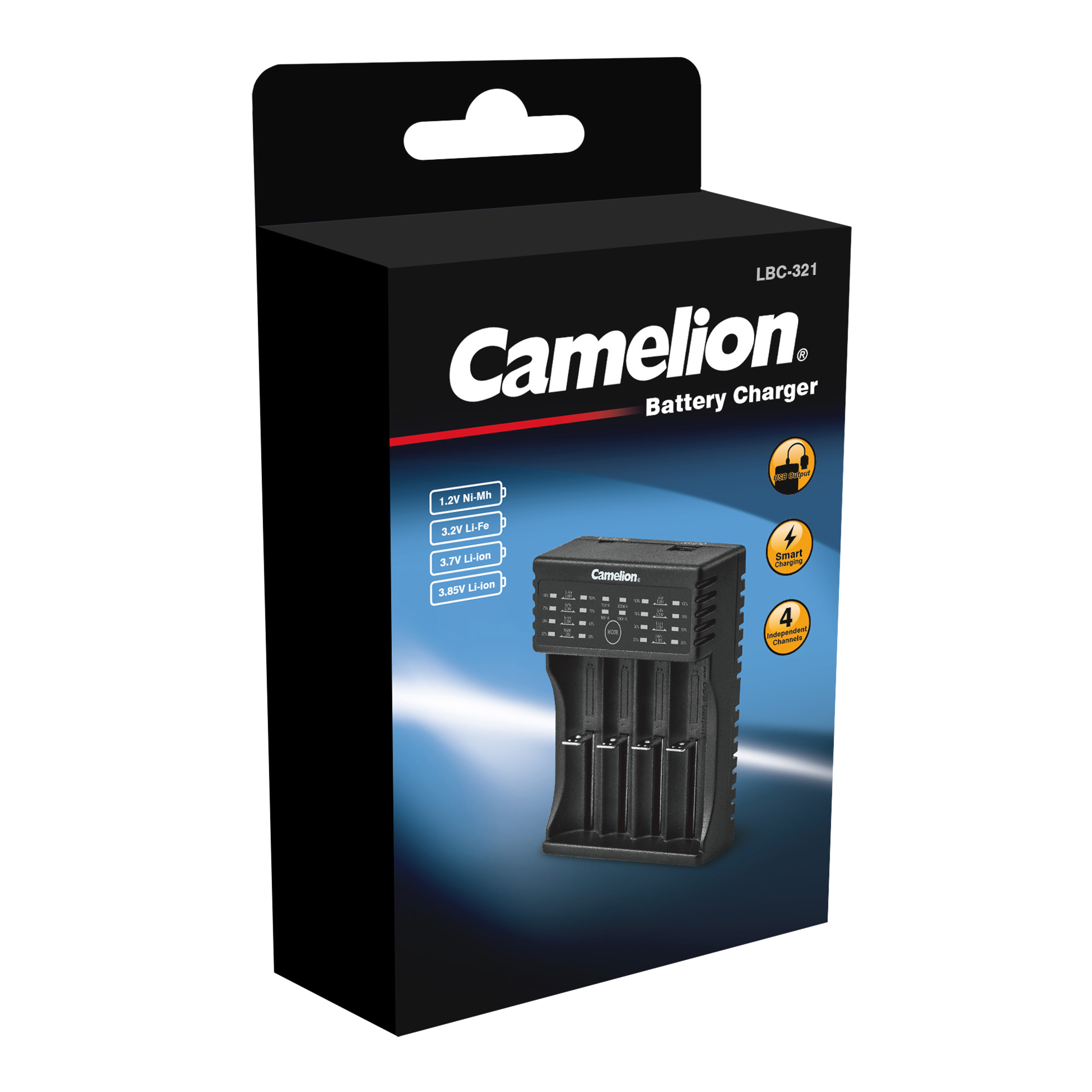

Camelion_20000321_LBC-321_Universal Ladegerät-box.jpg

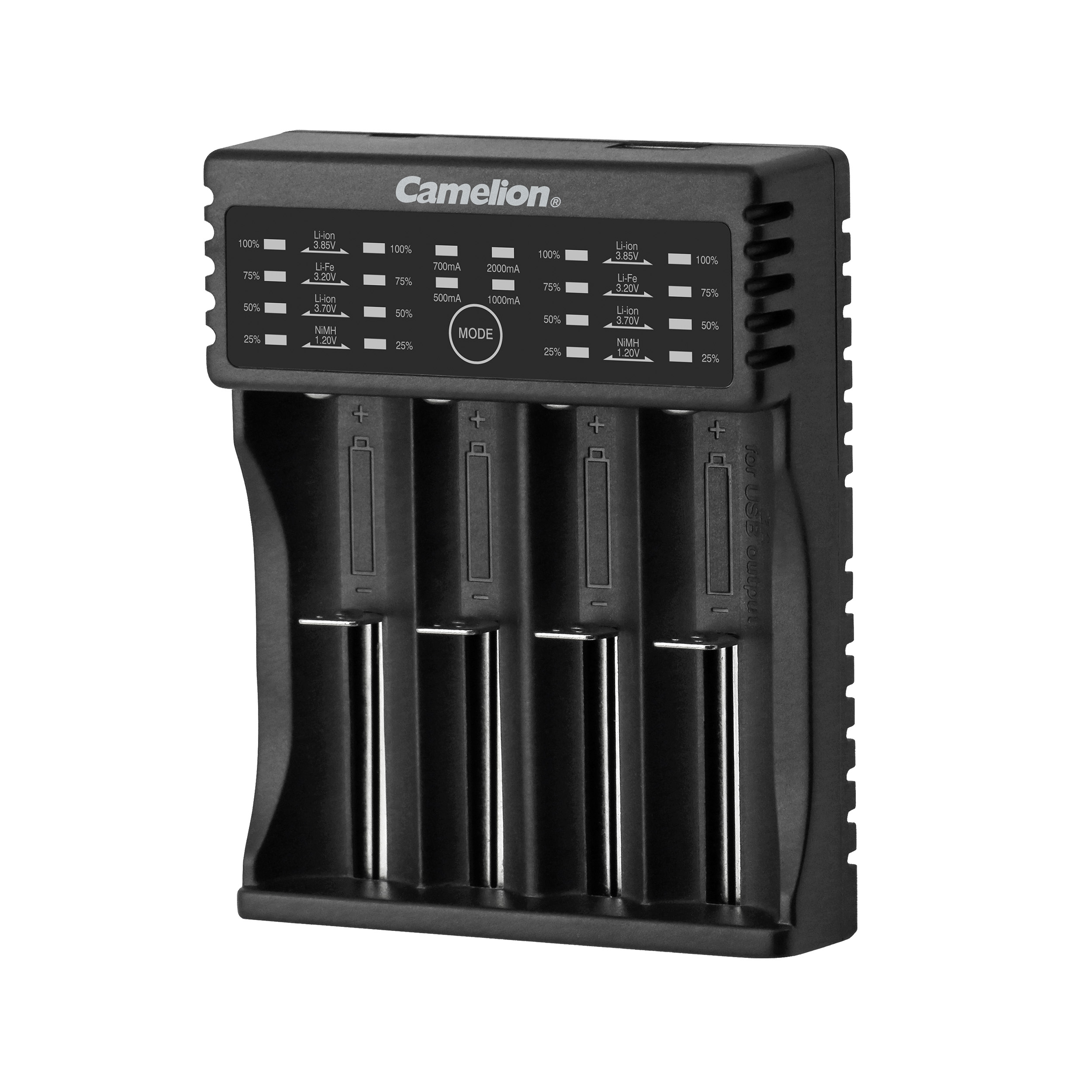

Camelion_20000321_LBC-321_Universal Ladegerät-front.jpg

Universal Charger LBC-321

charges Ni-MH 1.2V, Li-Fe 3.2V, Li-Ion 3.7 to 3.85V rechargeable batteries

  • 4 Independent charging channels
  • Automatic identification and charging of Ni-MH or Lithium Battery type
  • LED indicators Show the Battery types (1.2V Ni-MH, 3.2V Li-Fe, 3.7V Li-Ion, 3.85V Li-Ion) and charging Status (25%, 50%, 75%, 100%)
  • 4 selectable charging currents with MCU control
  • Can activate 0-V rechargeable batteries
  • Standard 5V/1.0A USB output port (A Li-Ion battery must be inserted in the far right channel)
SKU: 20000321 Categories: , Tags: , , , , , , , ,

Description

  • Charging voltage: 1.2V- / 3.2V- / 3.7V- / 3.85V
  • Output: 1 cell (4th channel only): 2000mA / 1000mA / 700mA / 500mA

                       2 cells: 1000mA / 700mA / 500mA

                       3 cells: 700mA / 500mA

                       4 cells: 500mA

  • USB Output: (Battery required in 4th channel): 5V – 1A
  • Input: Micro USB 5V – 2A
  • Weight (g) (without Battery): 131,4



LED Indicators
Blue LED flashing Charging
Blue LED constantly on Fully charged



Type of Battery Charging Times (appr.)
Li-Ion 26650 5000mAh 12 hours
Li-Ion 18650 2500mAh 6.0 hours
Li-Ion 18650 2000mAh 5.0 hours
Li-Ion 18500 1500mAh 3.5 hours
Li-Ion 17335 700mAh 100 mins
AA Ni-MH 2000mAh 5.0 hours
AAA Ni-MH 1000mAh 2.5 hours



Additional information

Weight 0,155 kg
Dimensions 5,1 × 13 × 20,5 cm
UK.Breite

30
UK.Hoehe

26
UK.Tiefe

44
VE.Breite

31.5
VE.Hoehe

14.5
VE.Tiefe

27.8
UK.Gewicht

8.5
VE.Gewicht

1.96
UK.Menge-VKE

48
PA.Palettenfaktor

1152
VE.Menge-VKE

12
UK-C-EAN

20849198008139
VE.B-EAN

10849198008132
B-EAN

10849198008132
C-EAN

20849198008139
Palettenlage

6 x 4
Palettenhöhe

121
Palettenkartons

24
Nettogewicht (ohne Verpackung)

0,1314
